High-Efficiency Drive System
Coordinated drive components support reliable, energy-efficient operation.
Standard screw compressor
Screw air compressor for workshop — CA
7.5–75 kWExplore CA screw air compressors for workshops and production facilities. Compare permanent-magnet variable-speed configurations for your air demand and installation.
Screw air compressor for workshop — CA
Product Overview
Explore CA screw air compressors for workshops and production facilities. Compare permanent-magnet variable-speed configurations for your air demand and installation.
Rare-Earth Permanent Magnet Motor
A rare-earth permanent magnet motor supports efficient variable-speed operation.
Variable Speed Drive
Variable-speed operation matches compressor output to changing air demand.
LeadCom

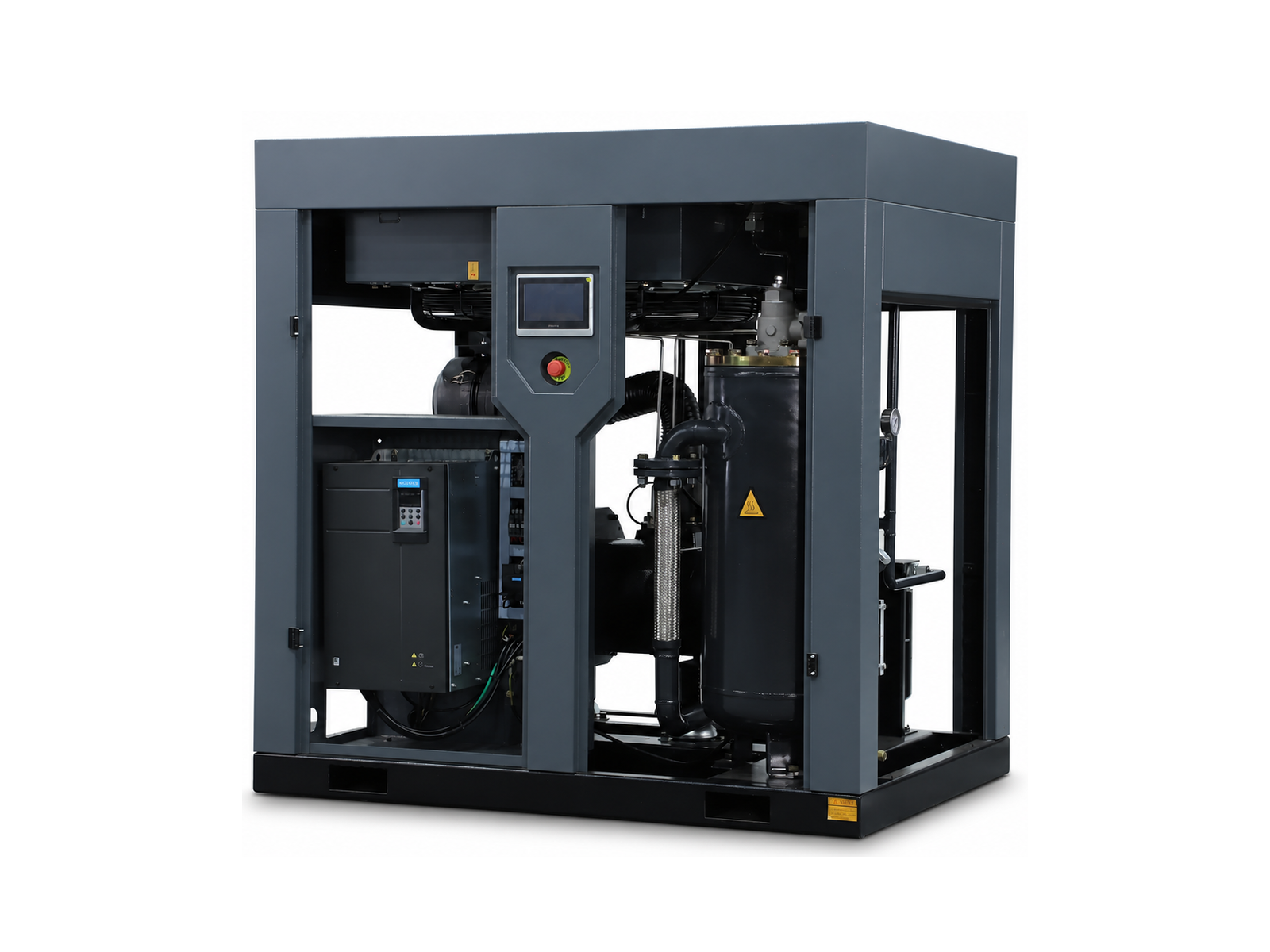

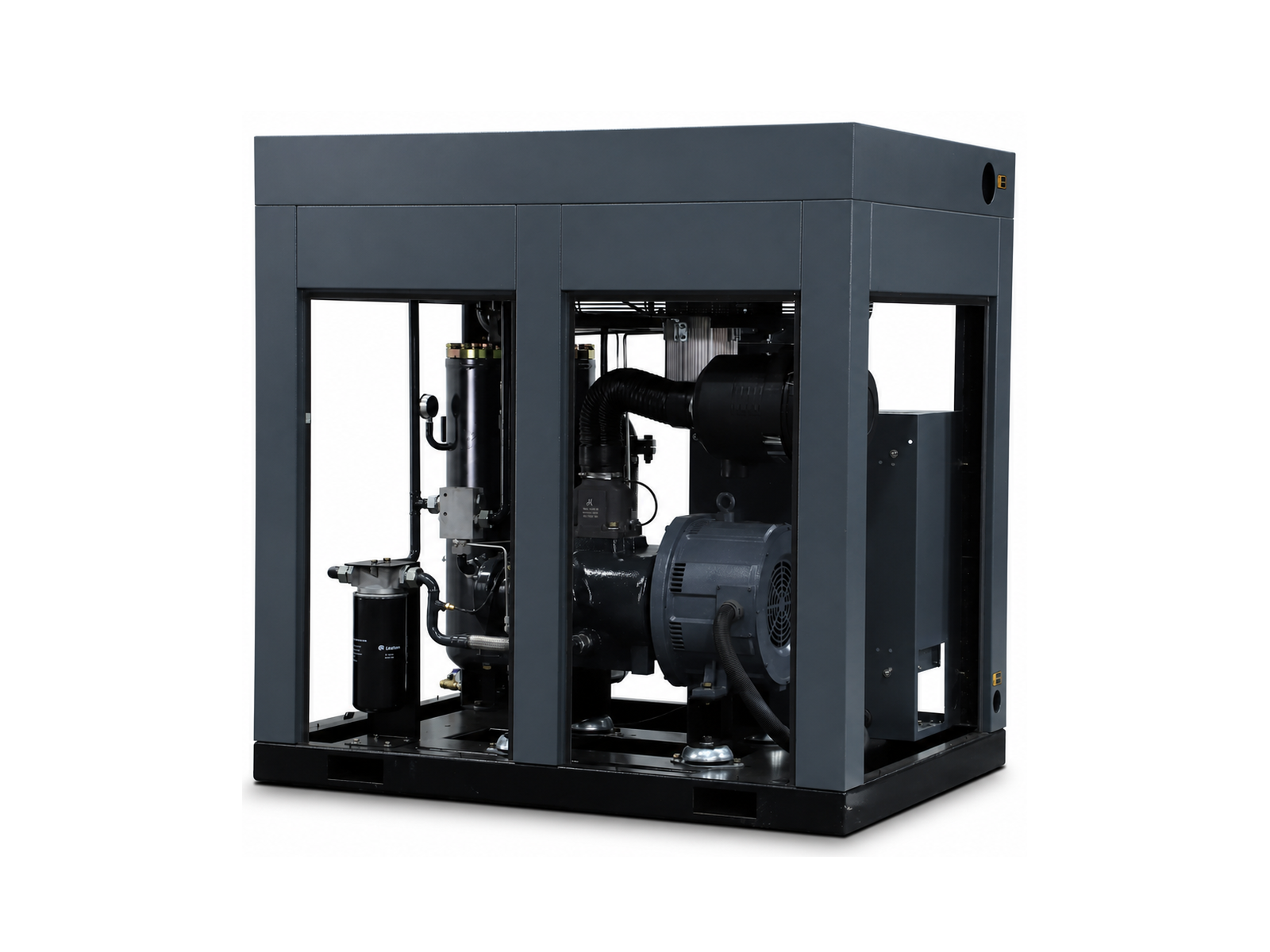

Equipment & Internal Views
Key Advantages
- High-Efficiency Drive System
- Constant-Pressure Air Supply
- High Efficiency at Partial Load
- Intelligent VFD Control
Core Advantages
High-Efficiency Drive System
Coordinated drive components support reliable, energy-efficient operation.
Rare-Earth Permanent Magnet Motor
A rare-earth permanent magnet motor supports efficient variable-speed operation.
Variable Speed Drive
Variable-speed operation matches compressor output to changing air demand.
Constant-Pressure Air Supply
Responsive control helps maintain stable pressure across changing demand.
High Efficiency at Partial Load
The system maintains efficient operation when air demand is below full load.
Intelligent VFD Control
Intelligent control coordinates motor speed with real-time air demand.
IP23 Protection
IP23 protection is specified for standard industrial applications.
Class F Insulation
Class F insulation supports reliable operation in standard industrial duty.
Smooth Soft Start
Controlled acceleration reduces electrical and mechanical starting impact.
Class 2 Energy Efficiency
Meets Class 2 energy-efficiency requirements for efficient and energy-saving operation.
Lower Maintenance Costs
A practical system design helps reduce routine maintenance requirements.
Product families
Technical Specifications
A compressor is only one part of a working system. LeadCom supports air generation, treatment, storage, vacuum and low-pressure air around the real process requirement.
| Model | Power | ≤ 8 bar | ≤ 10 bar | ≤ 12.5 bar | ≤ 16 bar | Outlet | Dimensions | Weight |
|---|---|---|---|---|---|---|---|---|
| CA7.5 | 7.5 kW | 1.1 | 1.0 | 0.8 | — | G1/2" | 945×600×1035 mm | 155 kg |
| CA11 | 11 kW | 1.6 | 1.4 | — | — | G1" | 1100×720×1180 mm | 245 kg |
| CA15 | 15 kW | 2.6 | 2.0 | 1.8 | 1.5 | — | — | — |
| CA22 | 22 kW | 3.6 | 3.0 | 2.6 | 2.3 | G1" | 1100×720×1180 mm | 293 kg |
| CA37 | 37 kW | 6.5 | 5.4 | 4.0 | 3.6 | Rp1-1/2" | 1280×920×1350 mm | 458 kg |
| CA55 | 55 kW | 10.0 | 9.0 | — | — | G2 | 1580×1160×1600 mm | 841 kg |
| CA75 | 75 kW | 12.5 | 10.0 | — | — | G2" | 1580×1160×1600 mm | 929 kg |
Free air delivery (F.A.D.) in m³/min. Standard supply: AC 380 V / 50 Hz with variable-speed soft start. A dash means the source data was not provided.
