Integrated Compressed Air System
Compression, storage, drying and filtration are combined in one system.
Integrated air station

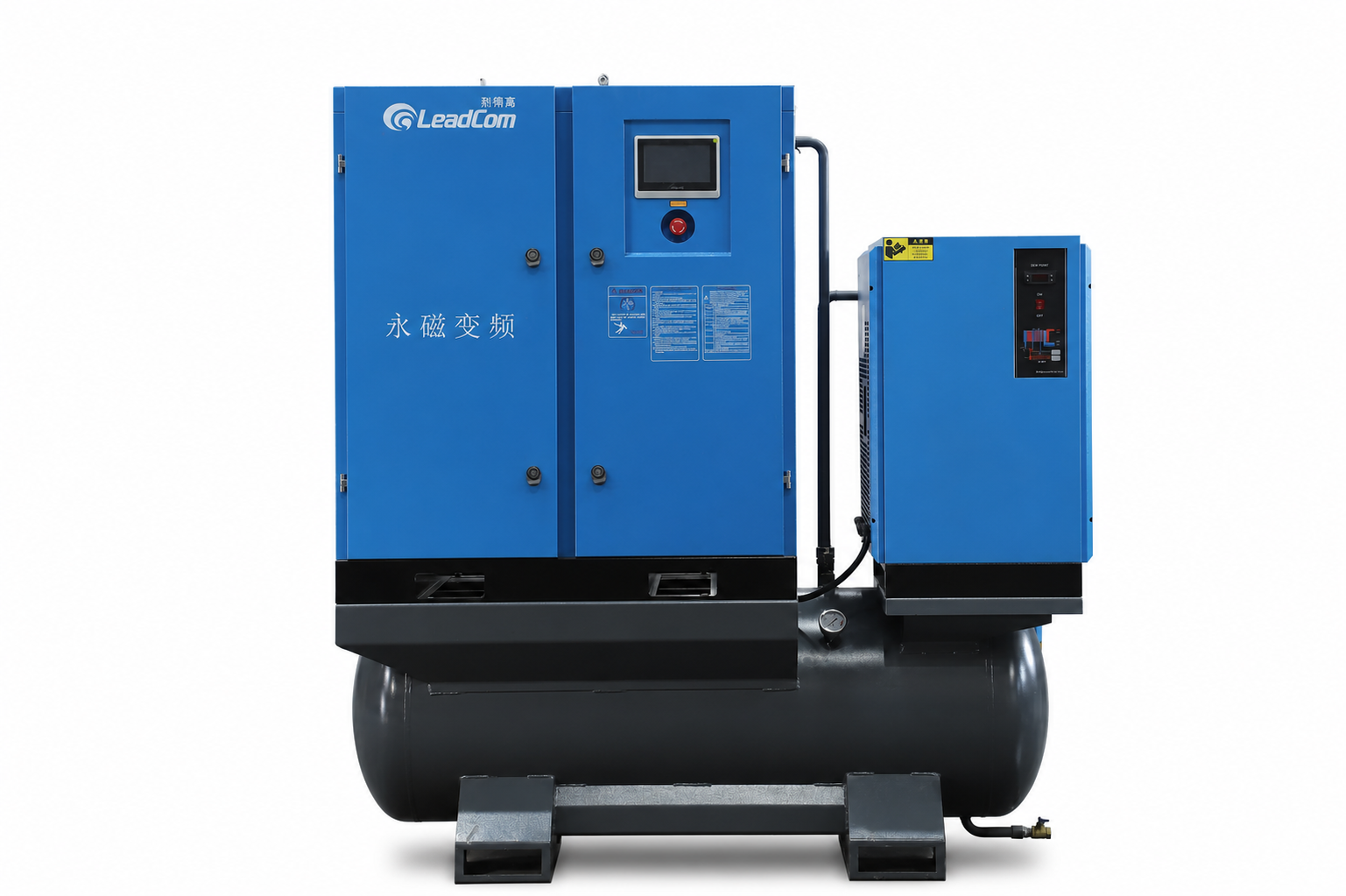

Rotary screw air compressor with dryer — All-in-one
7.5–22 kWExplore rotary screw air compressors with a dryer, receiver tank and filtration in one package. Plan a compact compressed air installation with fewer external connections.
Rotary screw air compressor with dryer — All-in-one
Product Overview
Explore rotary screw air compressors with a dryer, receiver tank and filtration in one package. Plan a compact compressed air installation with fewer external connections.
Reduced On-Site Installation
Factory integration reduces work required during on-site installation.
Fewer Piping Connections
Integrated components reduce external piping and connection points.
LeadCom

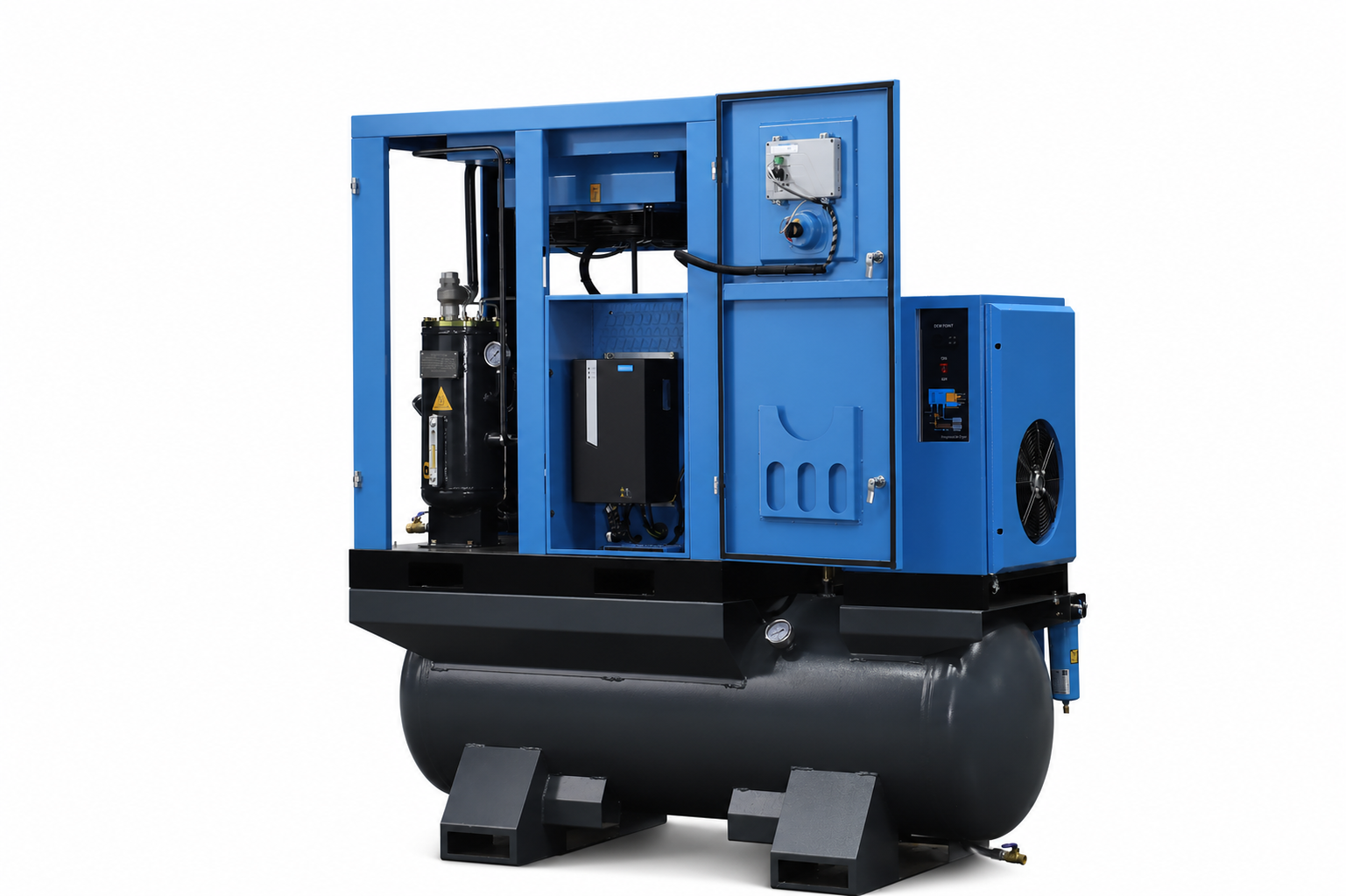

Equipment & Internal Views
Key Advantages
- Integrated Compressed Air System
- Reduced On-Site Installation
- Fewer Piping Connections
- Compact Footprint
Core Advantages
Integrated Compressed Air System
Compression, storage, drying and filtration are combined in one system.
Reduced On-Site Installation
Factory integration reduces work required during on-site installation.
Fewer Piping Connections
Integrated components reduce external piping and connection points.
Compact Footprint
The integrated layout reduces the floor space required for deployment.
High-Efficiency Drive System
Coordinated drive components support reliable, energy-efficient operation.
Rare-Earth Permanent Magnet Motor
A rare-earth permanent magnet motor supports efficient variable-speed operation.
Variable Speed Drive
Variable-speed operation matches compressor output to changing air demand.
Constant-Pressure Air Supply
Responsive control helps maintain stable pressure across changing demand.
High Efficiency at Partial Load
The system maintains efficient operation when air demand is below full load.
Intelligent VFD Control
Intelligent control coordinates motor speed with real-time air demand.
IP23 Protection
IP23 protection is specified for standard industrial applications.
Class F Insulation
Class F insulation supports reliable operation in standard industrial duty.
Smooth Soft Start
Controlled acceleration reduces electrical and mechanical starting impact.
Lower Maintenance Costs
A practical system design helps reduce routine maintenance requirements.
Product families
Technical Specifications
A compressor is only one part of a working system. LeadCom supports air generation, treatment, storage, vacuum and low-pressure air around the real process requirement.
| Model | Power | ≤ 8 bar | ≤ 10 bar | ≤ 15.8 bar | Outlet | Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| J7.5PMCTG | 7.5 kW | 1.1 | 0.9 | — | G3/4" | 1450×710×1585 mm | 350 kg |
| J11PMCTG | 11 kW | 1.6 | 1.4 | 1.0 | G3/4" | 1850×810×1880 mm | 443 kg |
| J15PMCTG | 15 kW | 2.6 | 2.0 | 1.6 | G3/4" | 1850×810×1880 mm | 453 kg |
| J22PMCTG | 22 kW | 3.6 | 3.0 | 2.3 | G1" | 1850×810×1880 mm | 542 kg |
Free air delivery (F.A.D.) in m³/min. Standard supply: AC 380 V / 50 Hz with variable-speed soft start. A dash means the source data was not provided.
